Hagway Key Features
- ARM Cortex-A8 based core 1.0 GHz with 512MB DDR3 RAM
- 2x PRU 32-bit microcontrollers
- Supports DDR3L devices to be backward compatible in 1.5V applications
- 4GB 8-bit eMMC on-board flash storage
- 3D graphics accelerator
- Android & Linux configuration
- NEON floating-point accelerator
- USB, RS232, RJ45 or POE interfaces
- Onboard antenna to enable field testing
- UART-to-USB interface for control, configuration, and data visualization
- RS232 x 5, COM 2 supports RS485/232/422
- GSM, GPRS, Zigbee
- FCC, CE and ROHS
|CPU||Texas ARM Cortex-A8 based core 1.0 GHz|
|Resolution||800 x 480 (Pixel)|
|Memory||4GB 8-bit eMMC on-board flash storage|
|RAM||512MB DDR3 RAM|
|GPRS||Built-in ( Onboard U-Box Module )|
|3G||WCDMA/GSM (SIM900) ( Optional)|
|Zigbee||IEEE 802.15.4 (Optional)|
|Ethernet bandwidth||10/100Mbps, Full-Featured 10/100 Ethernet Transceivers|
|Input interface||RS232 x 2 (COM2 support RS232, 422, 485) HDMI, VGA, AUDIO USB OTG x1|
|Digital Pins||65 (3.3V)|
|Micro SD Slot||2*46 pins|
|Net interface||RJ45 (POE Optional), USB 2.0, Mini USB 2.0 client port, OTG|
|Supported Interface||4x UART, 8x PWM, LCD, GPMC, MMC1, 2x SPI, 2x I2C, A/D Converter, 2xCAN Bus, 4 Timers|
|Battery||2.5 A (Optional)|
|Power Supply Type||C 12V Optional 6V-32V wide voltage, Current 1.0 ~ 2.0A, Power Consumption < 24W|
|OS||Android & Linux|
|Temperature||Operating: -20°C to 60°C ;Storage -20°C to 65°C|
|Humidity (non condensing)||Operating: 20%-80%; Storage: 10%-90%|
|Weight (approx.)||Actual: 1 kg ;Shipping: 2.0 kg|
|Mounting Options||75 mm and 100mm VESA mount or stand alone mount|

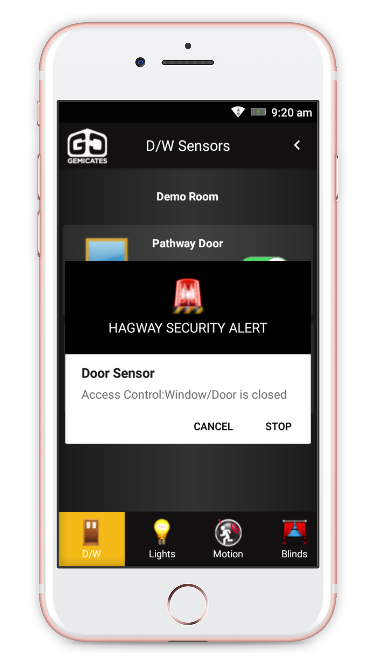

Security is concern to any homeowner, thats why gemicates provides an extensive range of sensors and modules that can be integrated within your preexisting security system.
This makes it look like you're home, even when you're away.
Real time images from surveillance cameras can be directly to a user's Android or iOS device anytime and to anywhere on the planet.
If you integrate a smart door lock into your automation system,when different entrance codes are input,different scenes can be triggered.
If pressed an alarm will be triggered and predesignated people will be contacted via text message.
If the system detects a gas leak,the gas supply will be automatically deactivated and the owner immediately notified.
When a smoke detector is triggered, a voice alarm will be sounded and a text message sent to the occupants.
When a home automation system takes care of you, comfort and conveniance becomes standard.

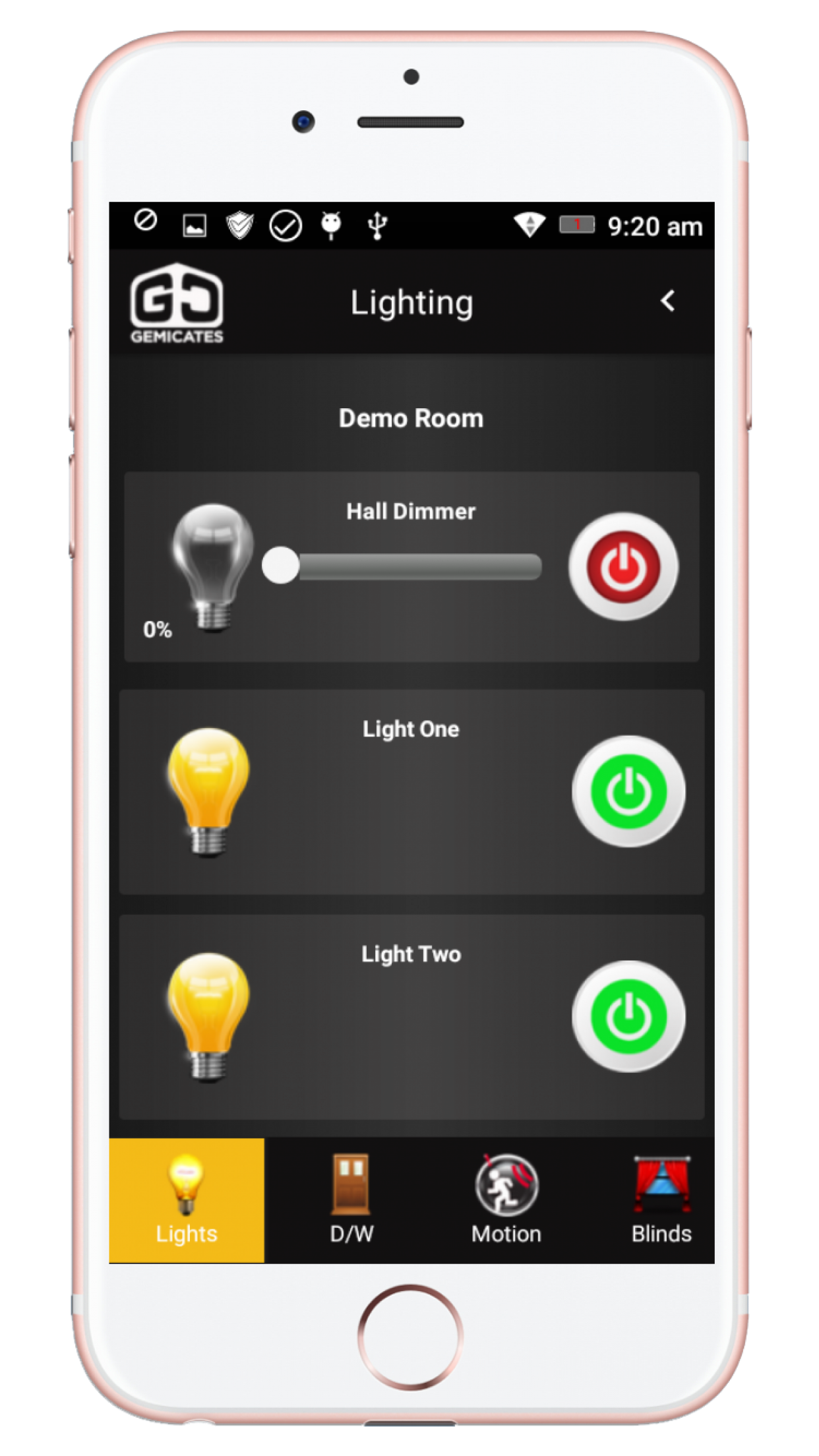

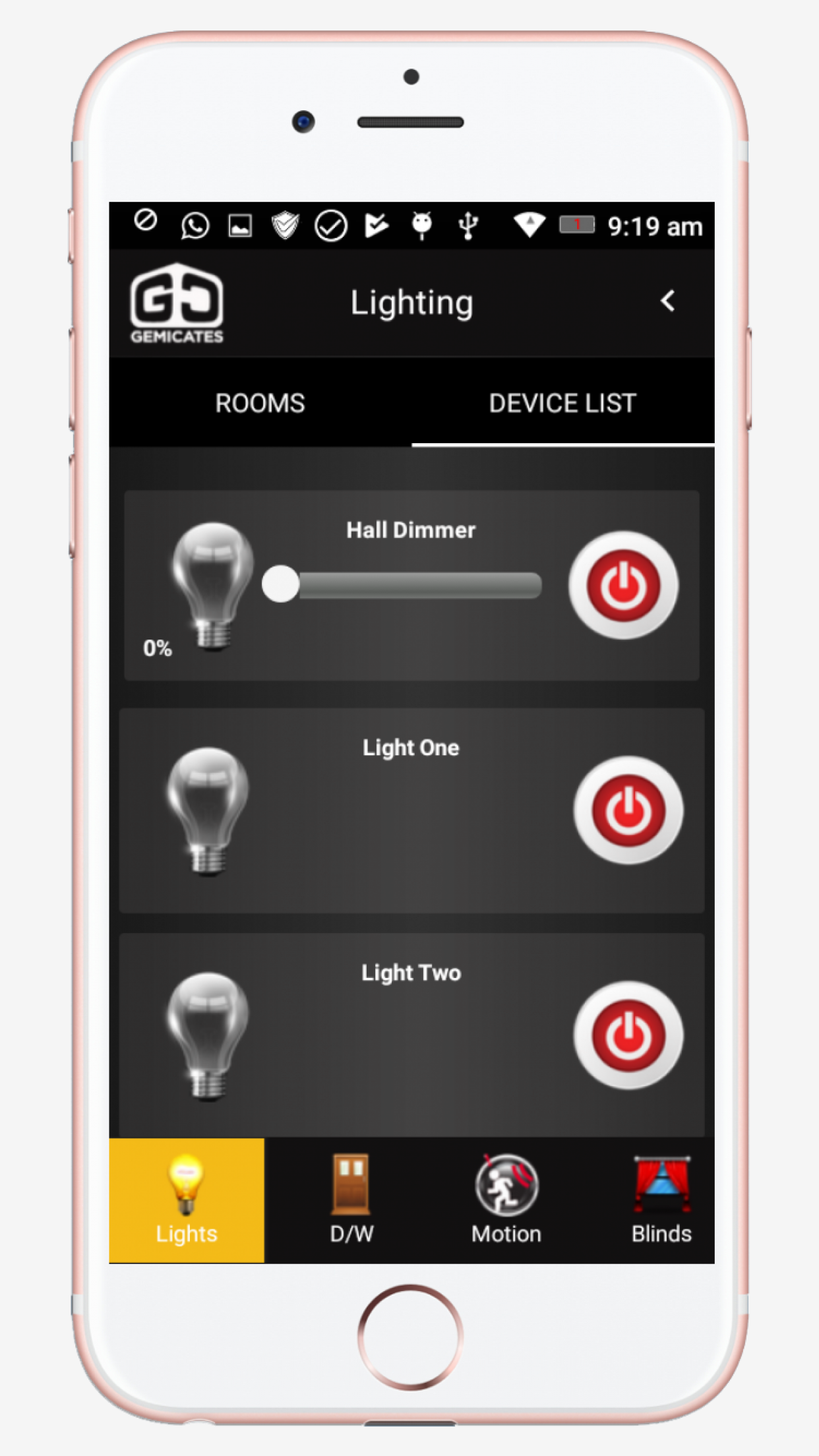

With lighting automation you can instantly adjust your illumination to suit any situation or atmosphere.
Control your lights from anywhere in the world. when yor are connected to the internet you can make it seem like you're home, even when you are not.

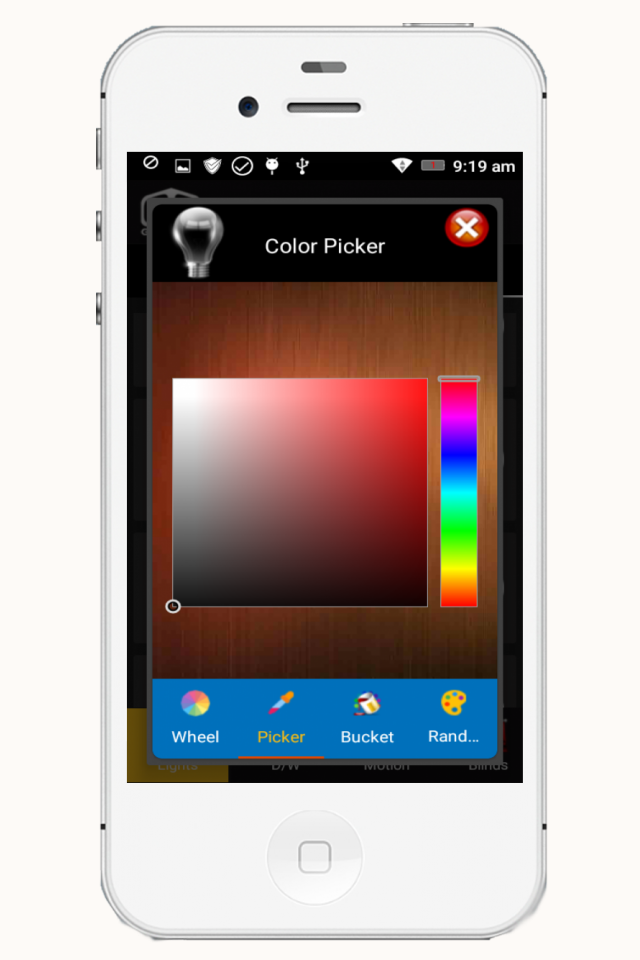

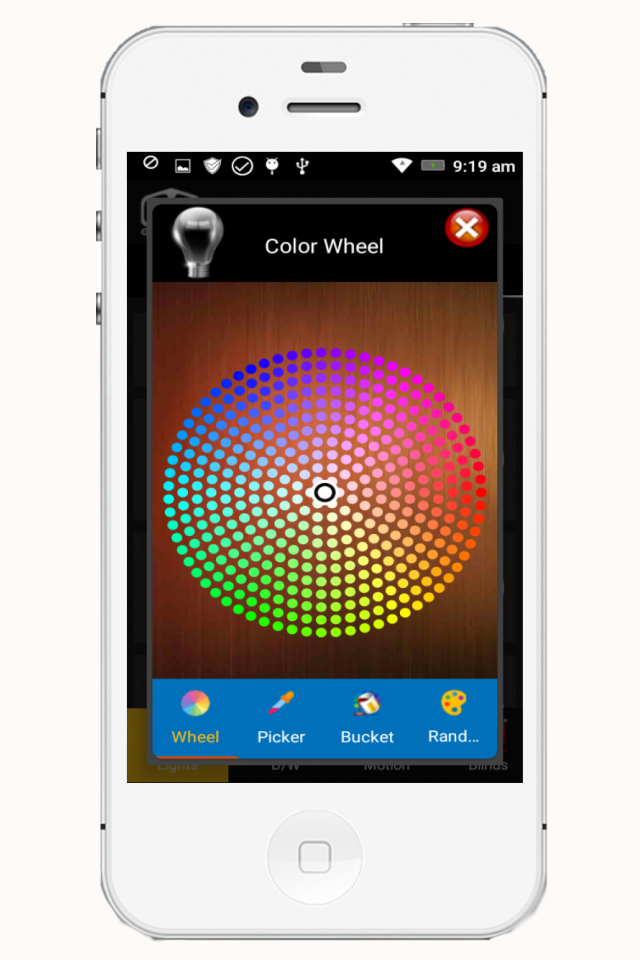

Colored lighting is for party and decorations, which can be insatntly made to produce aesthetic look and lighten up your mood with mesmerising color combo by gently varying the tempo.
Its's natural to protect what you hold dear, that's why Gemicates has developed a wide sensor range which enables you to turn your home into a castle.

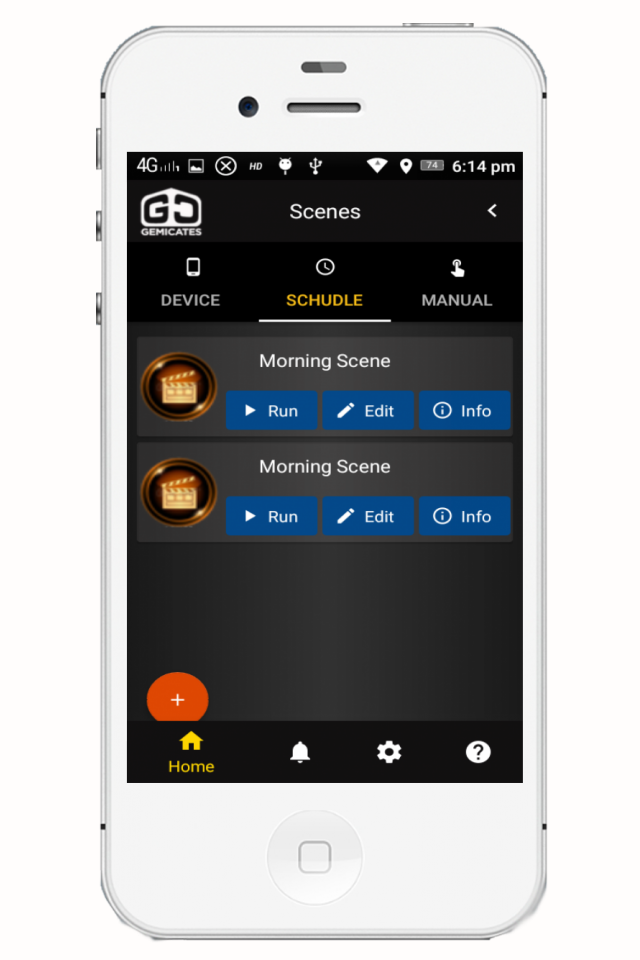

Scene can be smart security ideas to secure your home or a mood based a scene or scene to throw a party or a climate based scene or scene to arrange a movie in your home theatre system. Totally, a scene performs what a user wants collectively on a single tap, it controls everything.
Via the app your home can be completely voice controlled. By sending a voice command, lights can be turned on or off, the temperature set, blinds and shutters opened and closed, and all appliances managed.

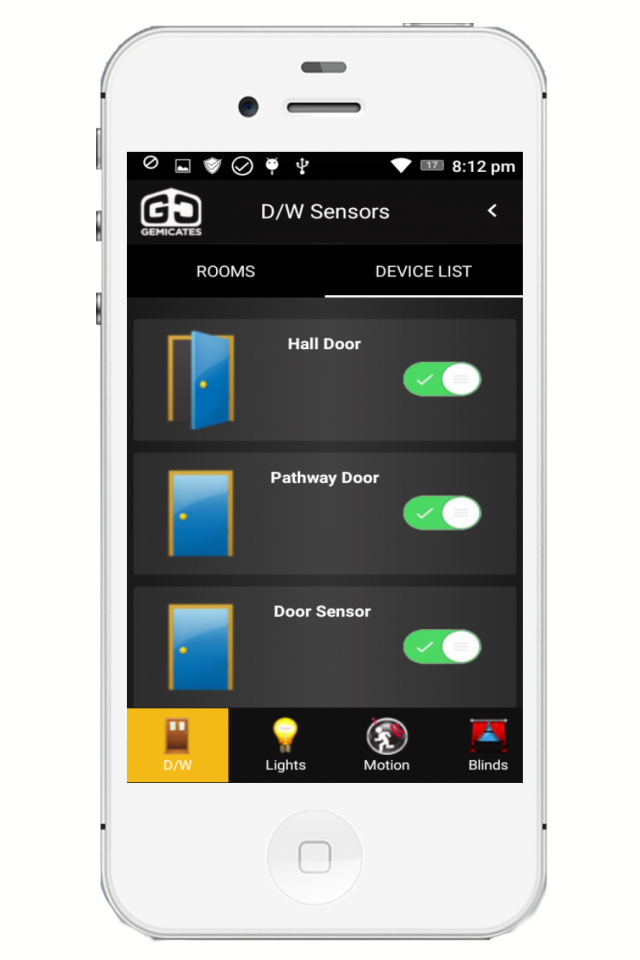

Working in conjunction with the automation system, the Hagway app enables remote control, appliance control and security system management.

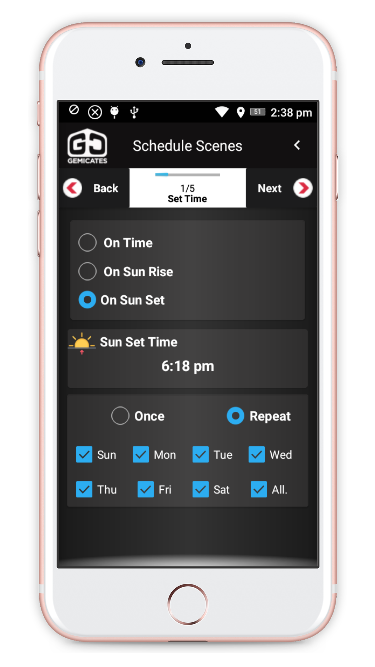

Timed events can be set which enable the system to carry out pre-specified tasks automatically.
With efficient automated utility management, every home regardless of size or age can see a dramatic reduction in energy consumption.
with unique range of Gemicates software and hardware though, any home can effortlessly acheive maximum effiency.
If the system register that a room is vacant the lighting will be automatically deactivated.

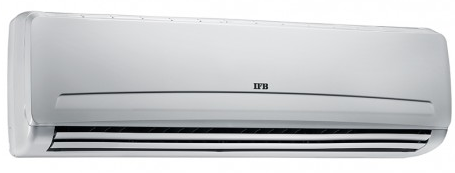

With dynamic HVAC control, heating or cooling devices work with the external environment.
Events can be programmed to be activated at set times by the user, this enables devices to be activated and deactivated with no external input.
with built in logic units, Gemicates are truely smart. This enables the system to activate devices and appliances when a presence is detected, and deactivate them when the area is vacated.
